Natural Stone Design Pattern

VD01 Veneer: Dimensional – Ashlar

Features:

  • Square and Rectangle Shapes
  • Sawn Edges
  • Loose Joints
  • Approx. Width - 48 inches *
  • Approx. Thickness - 6 inches **
VIEW IN 3D

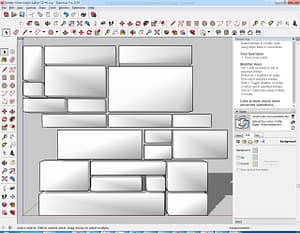

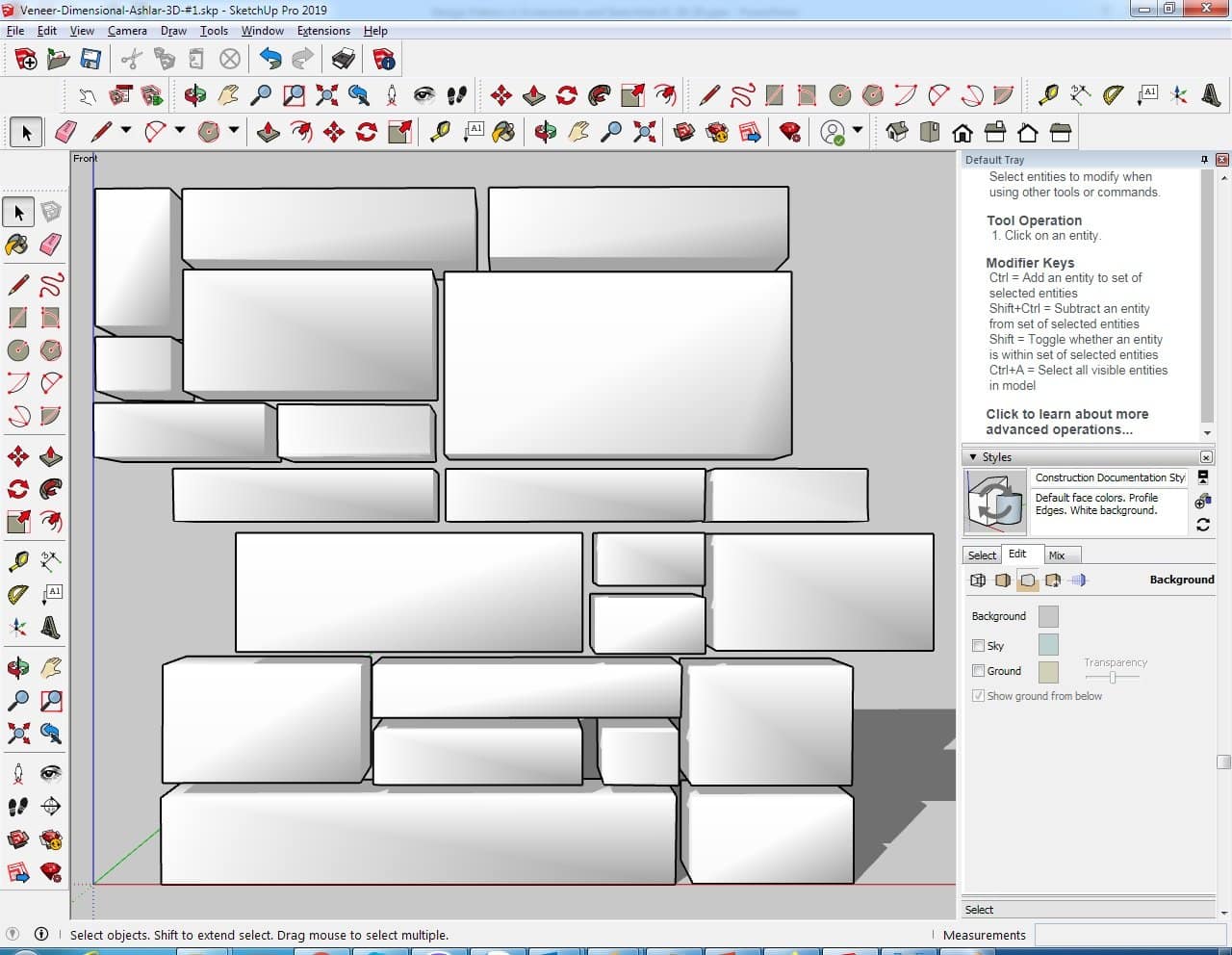

Veneer-Dimensional-Ashlar-3D-#1

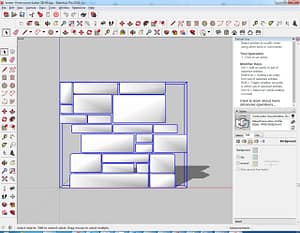

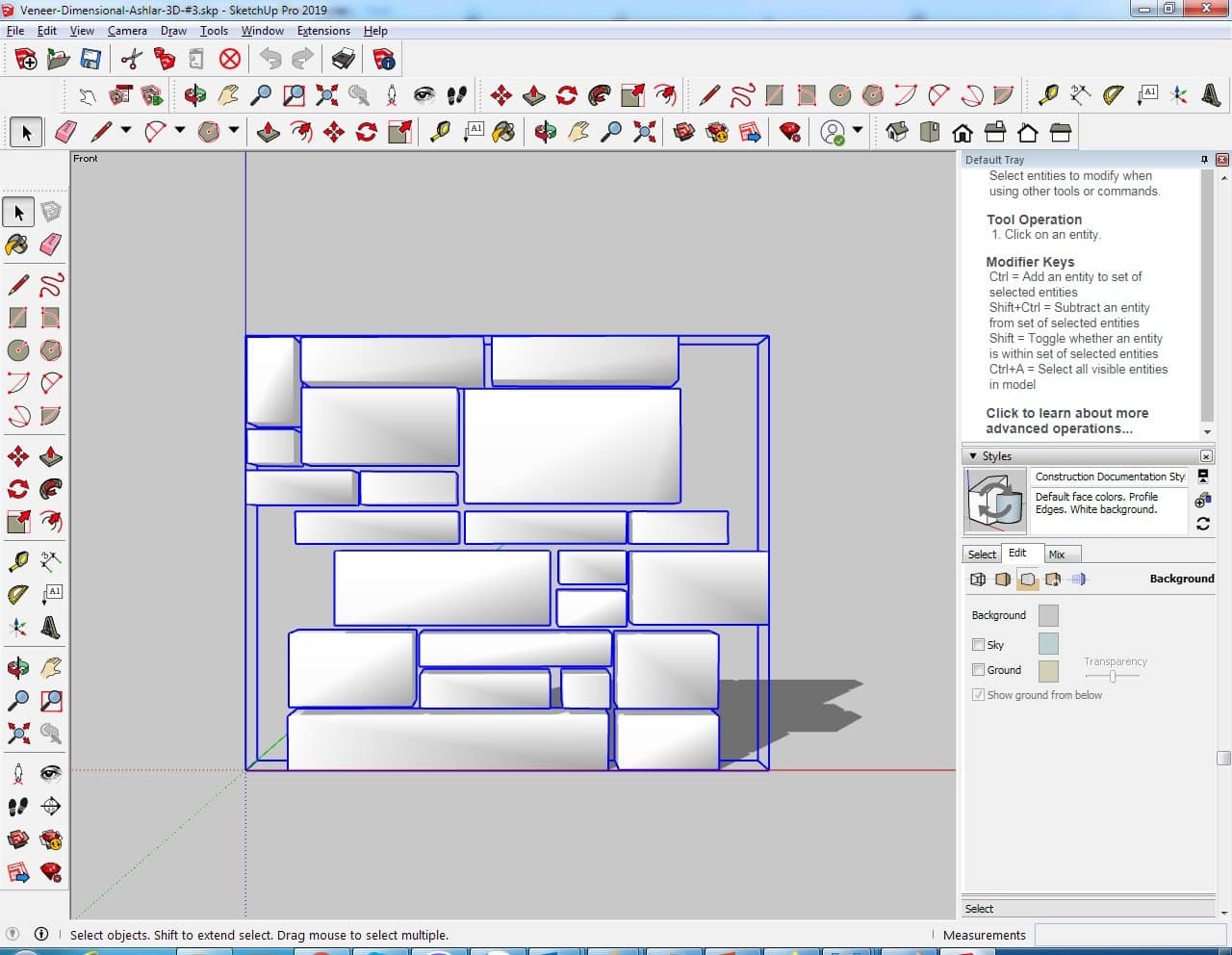

Veneer-Dimensional-Ashlar-3D-#3

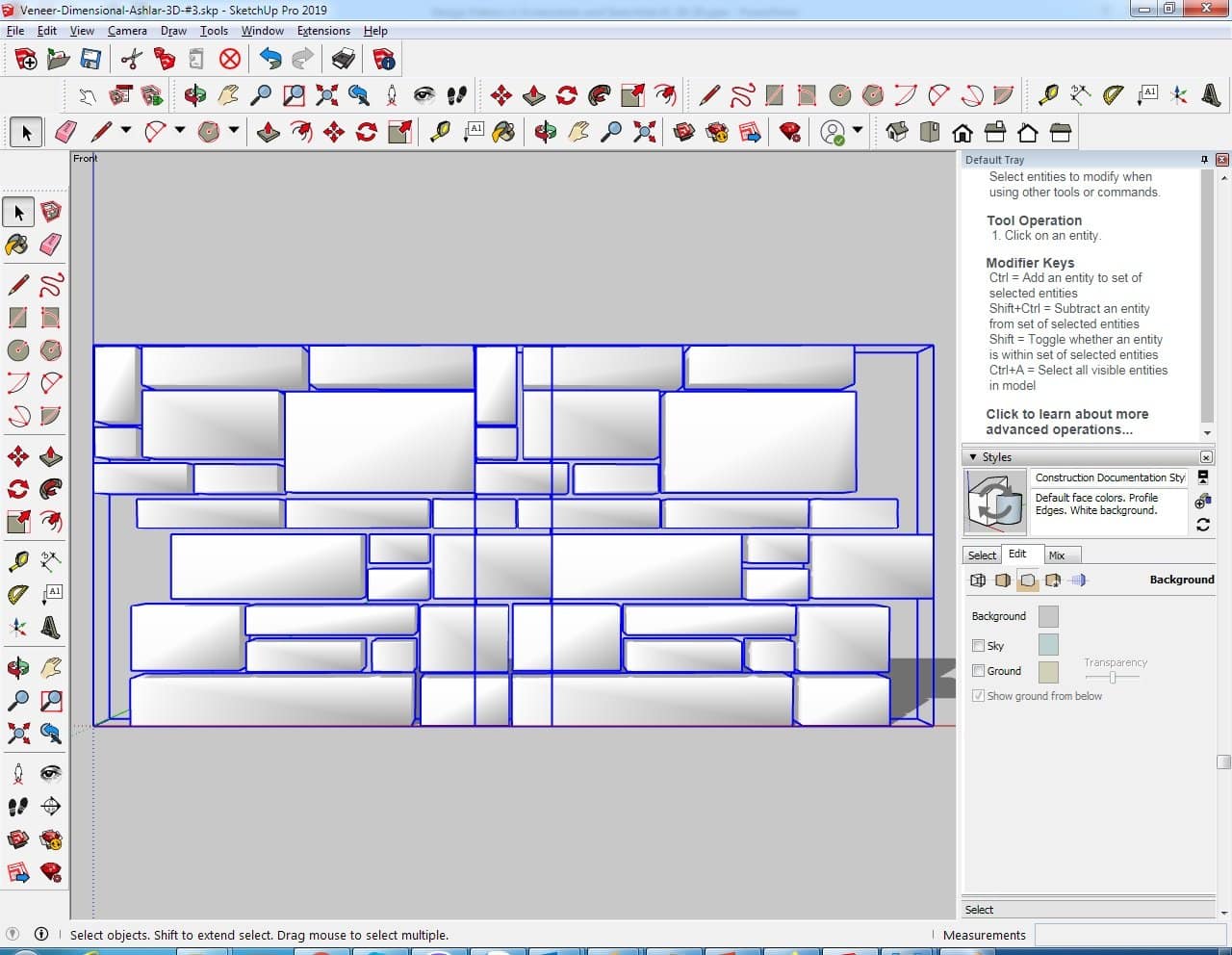

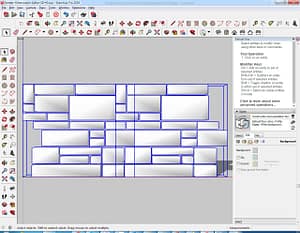

Veneer-Dimensional-Ashlar-3D-#4

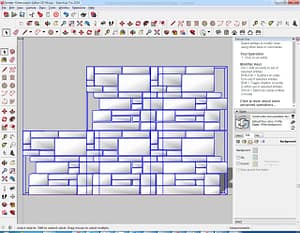

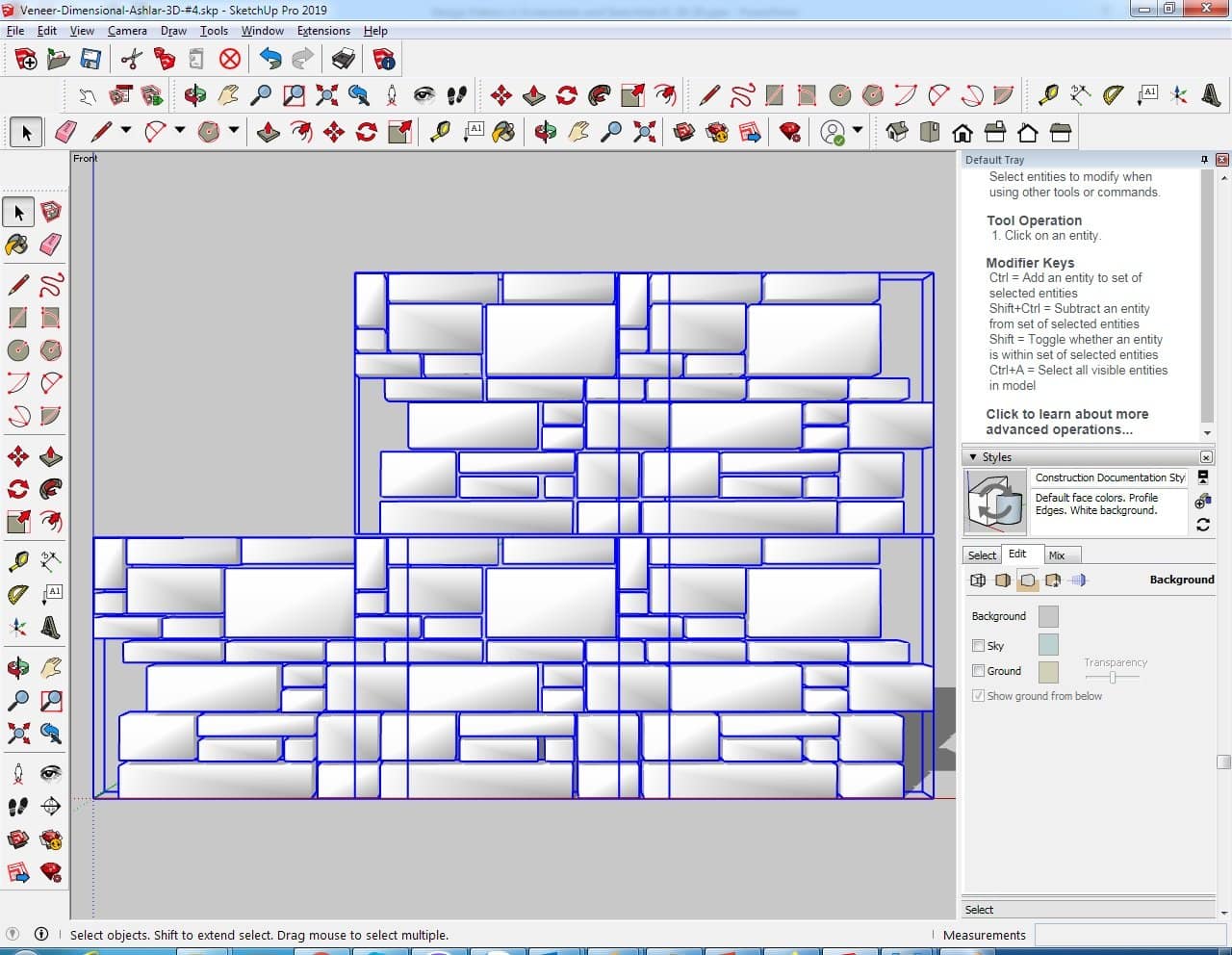

Veneer-Dimensional-Ashlar-3D-#5

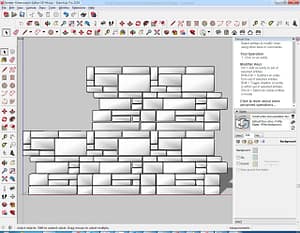

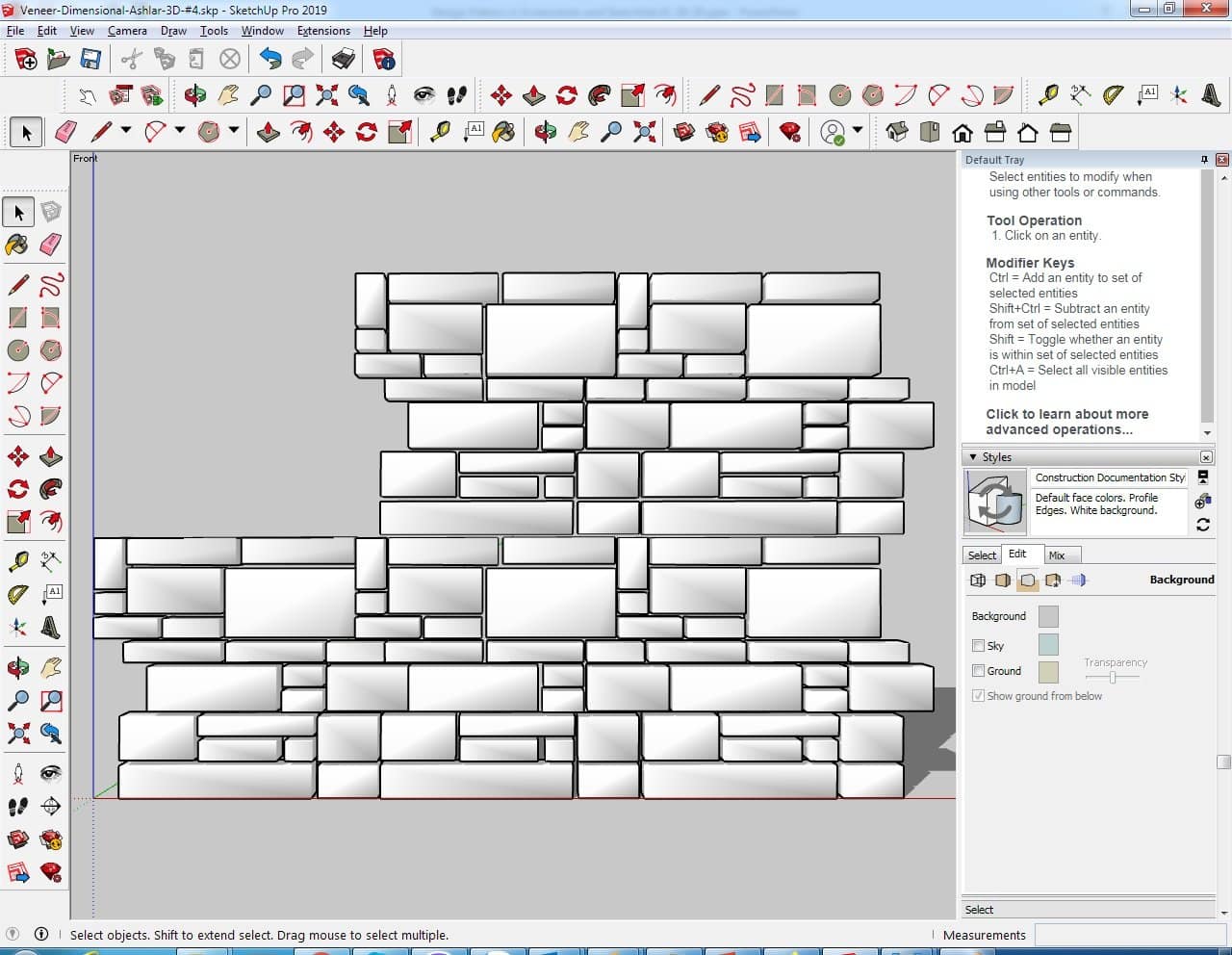

Veneer-Dimensional-Ashlar-3D-#6

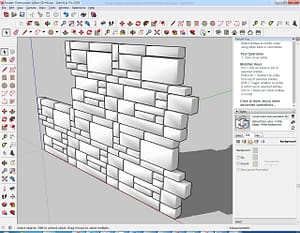

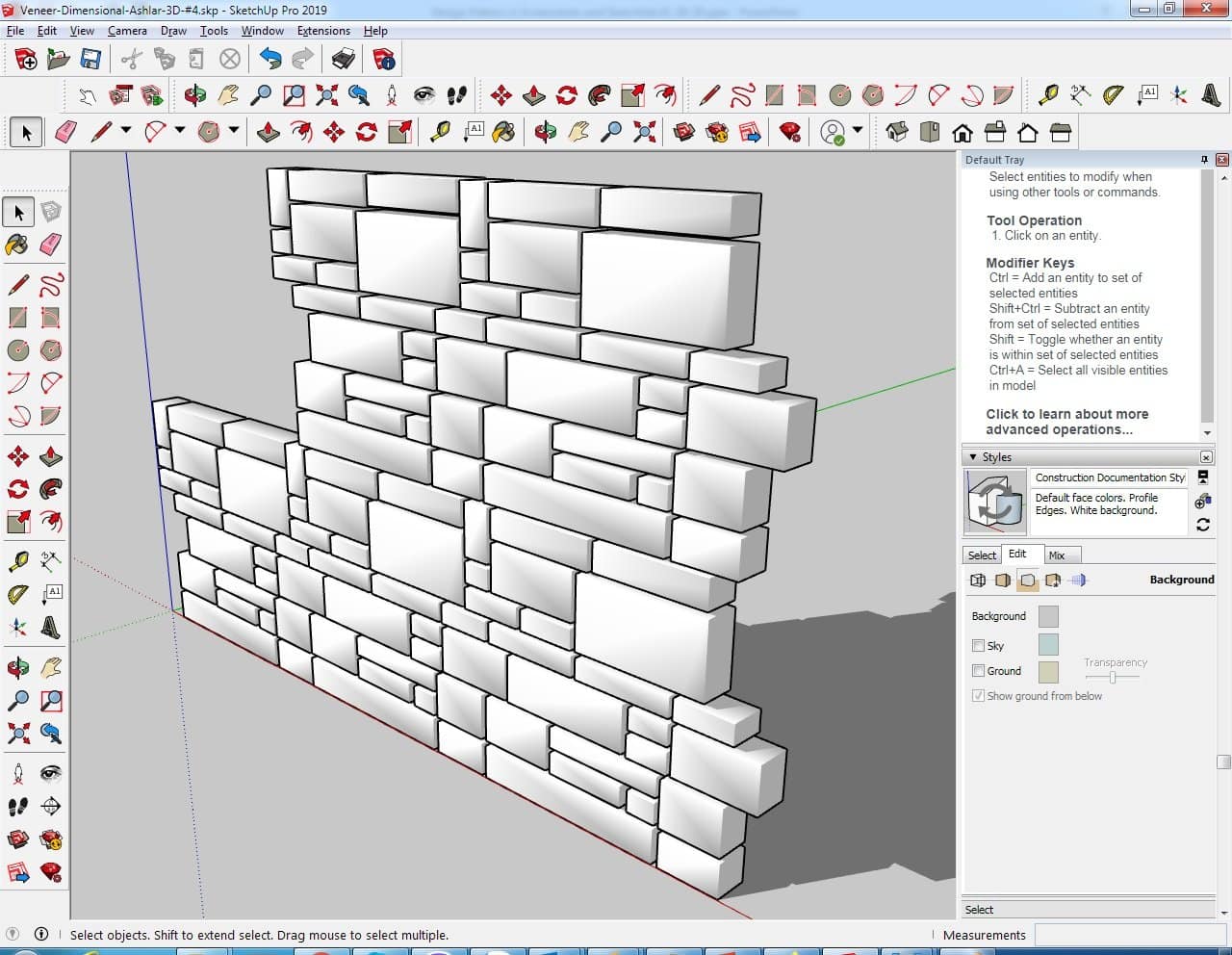

Veneer-Dimensional-Ashlar-3D-#7

Try this pattern in our Stone Designer
to visualize and create CAD rendering assets ...

DOWNLOAD CAD FILES

Formats included: .skp |.dwg | .dxf

* Approximate width of the design pattern shown for scale purposes. This measurement is along the bottom/first row of stones. You can change this scale reference according to the size of the stones you plan to use.

** Approximate thickness of the design pattern shown for scale purposes. You can change this scale reference according to the size of the stones you plan to use.

Important Copyright Notice – The files provided are the copyrighted property of Stone Curators LLC. We ask that you include “Courtesy of Stone Curators” wherever they are displayed. You may use these files for your personal or work-related use. You may share these files and derivative products with work colleagues, contractors and customers. For other uses, please contact us to obtain permission. Please see our complete Terms of Use for more information.
