Dimensional Patterns
For lay down stone projects, Dimensional Patterns are an ideal choice for their ease of installation, aesthetic appeal, and cost-efficiency. Dimensional Patterns are those that are sawn or split so the sides of each rectangular stone piece is a multiple of 6 inches. Each of our dimensional patterns below is organized in terms of the number of pieces per unit, and the sizes of the pieces within each unit. You can think of a units as puzzle pieces which fit together to cover a surface. The benefits of Dimensional Patterns are due to the minimal need for cutting by the mason or installer. This reduces installation cost.

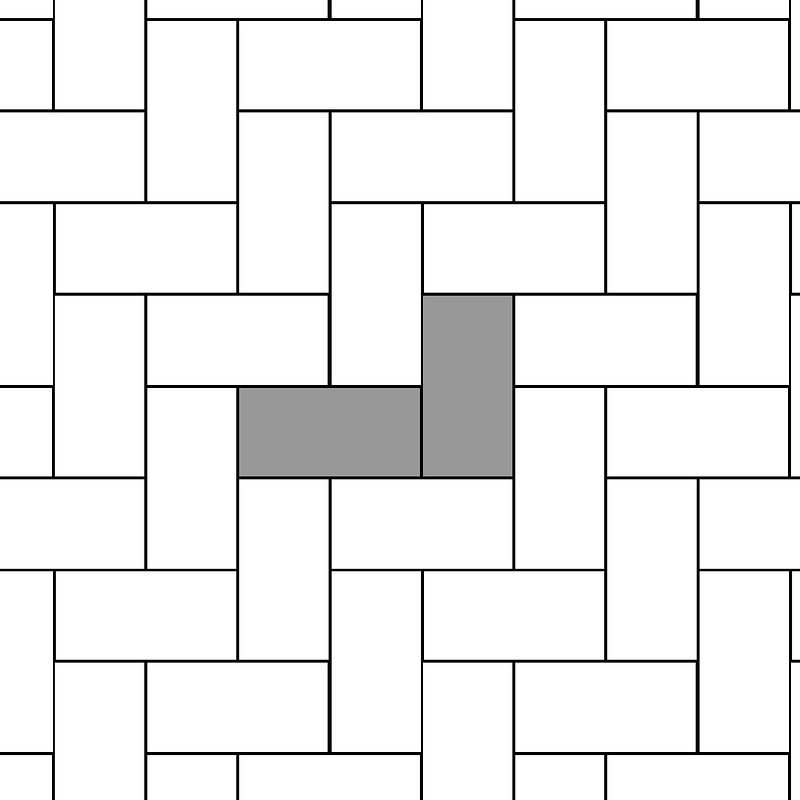

DP015 -
Sawn-Edge Dimensional Standard Herringbone
2 Pieces 1 Size
Each unit of this design pattern consists of 2 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 12×6″(2).
In Stone Designer start by using 12″ wide rectangular piece by entering max width= 12″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6"(2) | 12" |
| 24x12"(2) | 24" |
| 36x18"(2) | 36" |
| 48x24"(2) | 48" |
| 60x30"(2) | 60" |

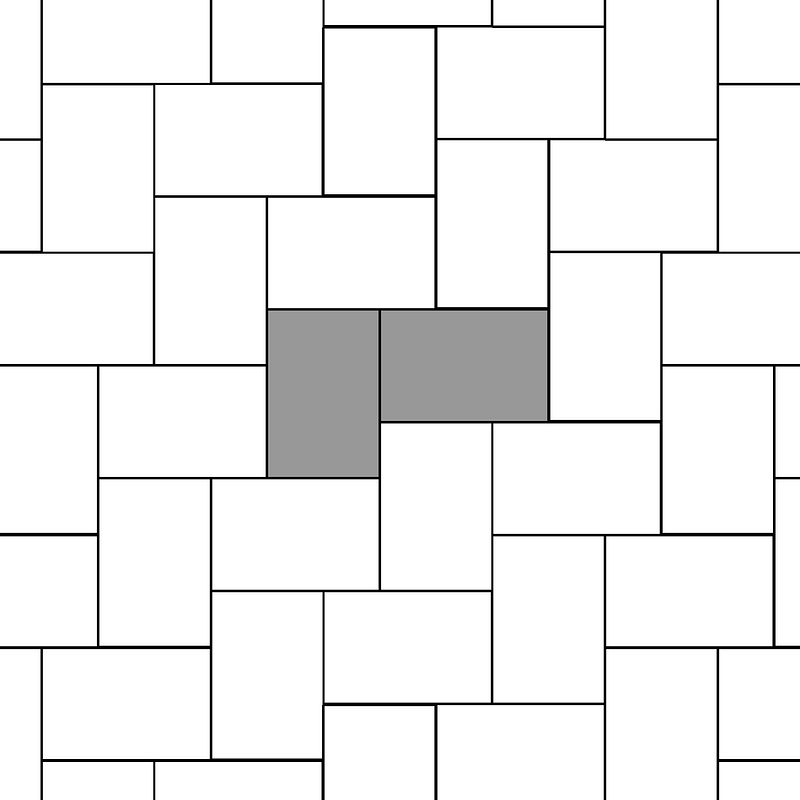

DP016 -
Sawn-Edge Dimensional Unique Herringbone
2 Pieces 1 Size
Each unit of this design pattern consists of 2 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 18×12″(2).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 18x12"(2) | 18 |
| 36x24"(2) | 36" |
| 48x36"(2) | 48" |
| 72x48"(2) | 72" |

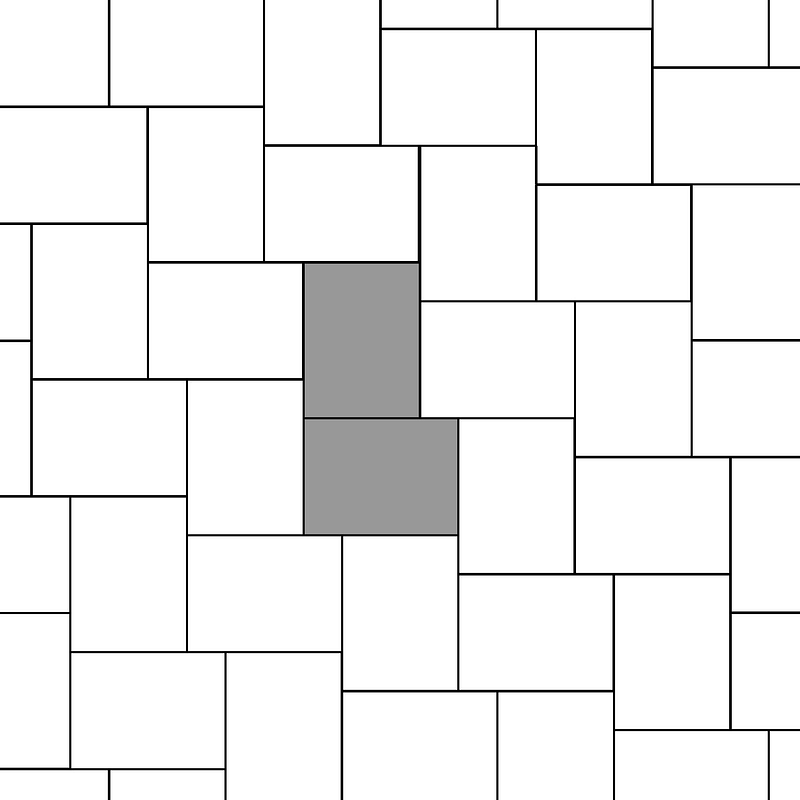

DP017 -
Sawn-Edge Dimensional Unique Herringbone
2 Pieces 1 Size
Each unit of this design pattern consists of 2 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 24×18″(2).
In Stone Designer start by using 24″ wide rectangular piece by entering max width= 24″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 24x18"(2) | 24" |
| 48x36"(2) | 48" |
| 72x54"(2) | 72" |

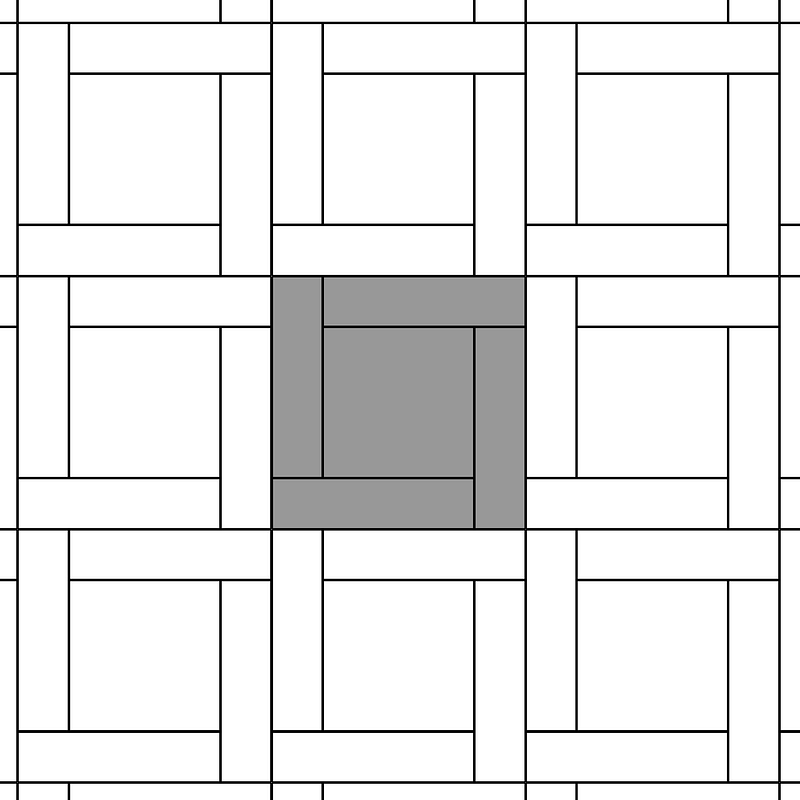

DP018-
Sawn-Edge Dimensional Basket Weave
5 Pieces 2 Sizes
Each unit of this design pattern consists of 5 stone pieces in 2 different sizes. The the smallest version of the pattern is made of pieces that are 24×6″(4), 18×18″(1).
In Stone Designer start by using 24″ wide rectangular piece by entering max width= 24″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 24x6"(4), 18x18"(1) | 24" |
| 48x12"(4), 36x36"(1) | 48" |
| 72x18"(4), 48x48"(1) | 72" |

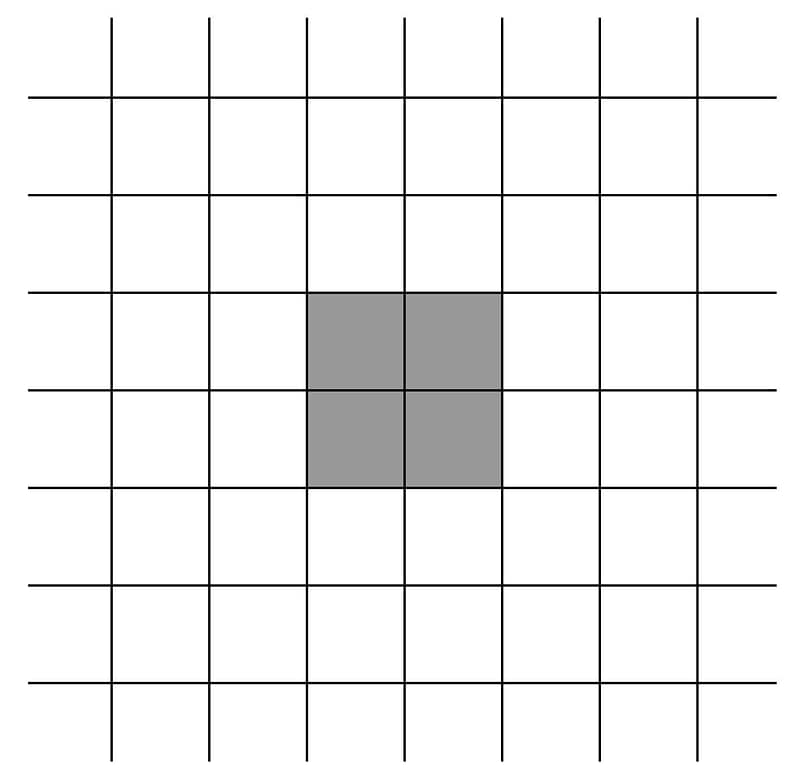

DP060 -
Sawn-Edge Dimensional Adjustable Stacked Bond
4 Pieces 1 Size
Each unit of this design pattern consists of 4 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 6×6″(4).
In Stone Designer start by using 6×6″ piece by entering width=6″ height=6″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Width | Height |
|---|---|
| 6x6" | width=6" height=6" |
| 12x6" | width=12 height=6" |
| 12x12" | width=12" height=12" |
| 18x12" | width=18" height=12" |
| 18x18" | width=18" height=18" |
| 24x18" | width=24" height=18" |
| 24x24" | width=24" height=24" |
| 36x24" | width=36" height=24" |
| 36x36" | width=36" height=36" |
| 48x36" | width=48" height=36" |
| 48x48" | width=48" height=48 |

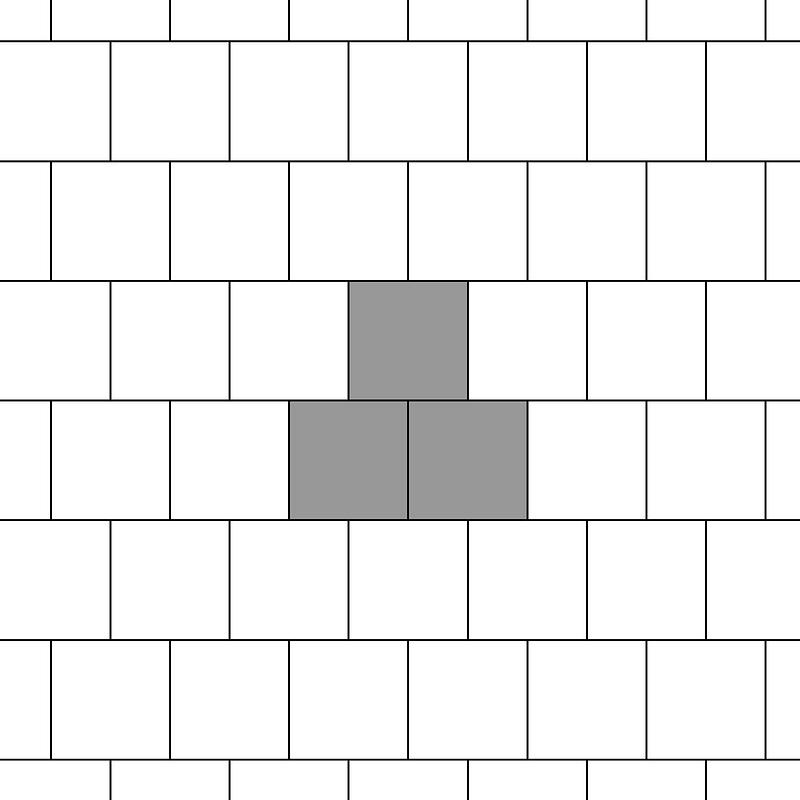

DP061 -
Sawn-Edge Dimensional Adjustable Half Running Bond
3 Pieces 1 Size
Each unit of this design pattern consists of 3 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 6×6″(3).
In Stone Designer start by using 6×6″ piece by entering width=6″ height=6″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Width | Height |
|---|---|
| 6x6" | width=6" height=6" |
| 12x6" | width=12 height=6" |
| 12x12" | width=12" height=12" |
| 18x12" | width=18" height=12" |
| 18x18" | width=18" height=18" |
| 24x18" | width=24" height=18" |
| 24x24" | width=24" height=24" |
| 36x24" | width=36" height=24" |
| 36x36" | width=36" height=36" |
| 48X24" | width=48" height=24" |
| 48x36" | width=48" height=36" |
| 48x48" | width=48" height=48 |

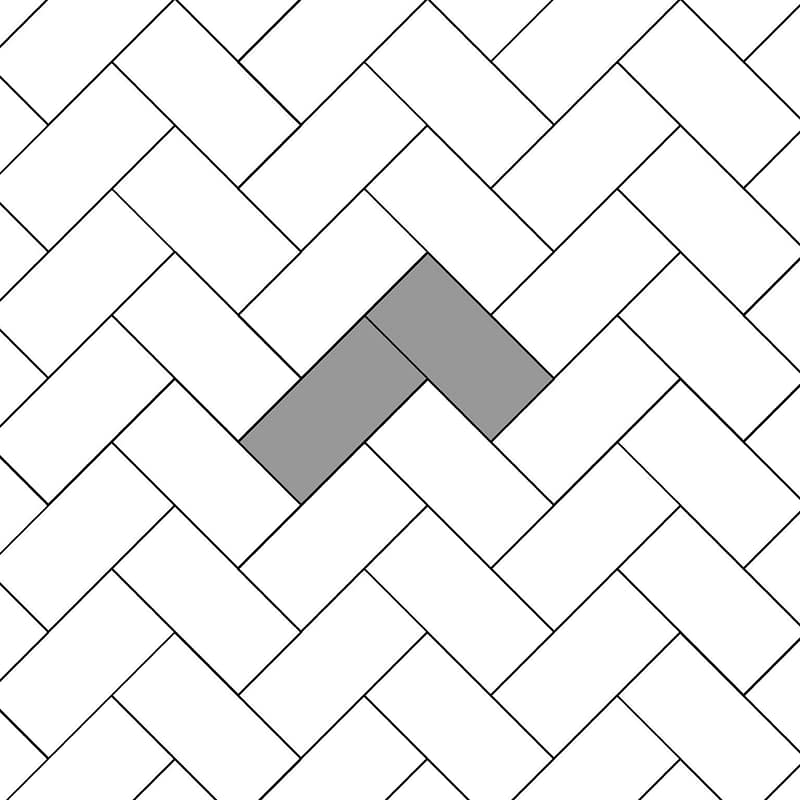

DP062 -
Sawn-Edge Dimensional Adjustable Herringbone
2 Pieces 1 Size
Each unit of this design pattern consists of 2 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 12×6″(2).
In Stone Designer start by using 12×6″ piece by entering width=12″ height=6″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Width | Height |
|---|---|
| 12x6" | width=12 height=6" |
| 18x6" | width=18" height=6" |
| 18x12" | width=18" height=12" |
| 24x12" | width=24" height=12" |
| 24x18" | width=24" height=18" |
| 24x24" | width=24" height=24" |
| 36x12" | width=36" height=12" |
| 36x24" | width=36" height=24" |
| 48x12" | width=48" height=12" |
| 48x18" | width=48" height=18" |
| 48x24" | width=48" height=24" |
| 48x36" | width=48" height=36" |

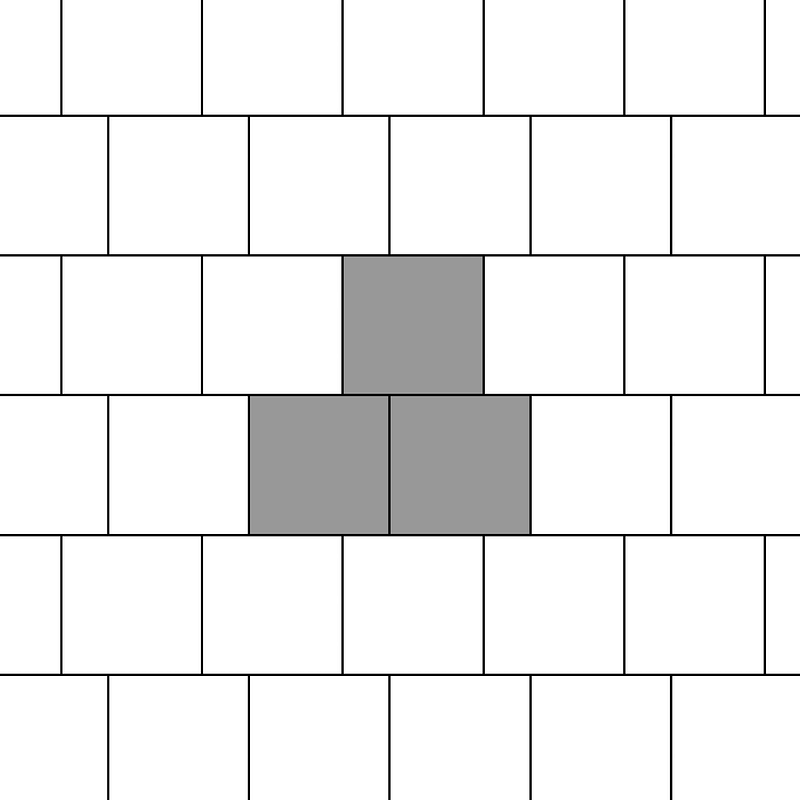

DP063 -
Sawn-Edge Dimensional Adjustable Running Bond
3 Pieces 1 Size
Each unit of this design pattern consists of 3 stone pieces of the same size. The the smallest version of the pattern is made of pieces that are 6×6″(3).
In Stone Designer start by using 6×6″ piece by entering width=6″ height=6″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Width | Height |
|---|---|
| 6x6" | width=6" height=6" |
| 12x6" | width=12 height=6" |
| 12x12" | width=12" height=12" |
| 18x12" | width=18" height=12" |
| 18x18" | width=18" height=18" |
| 24x18" | width=24" height=18" |
| 24x24" | width=24" height=24" |
| 36x24" | width=36" height=24" |
| 36x36" | width=36" height=36" |
| 48x36" | width=48" height=36" |
| 48x48" | width=48" height=48 |

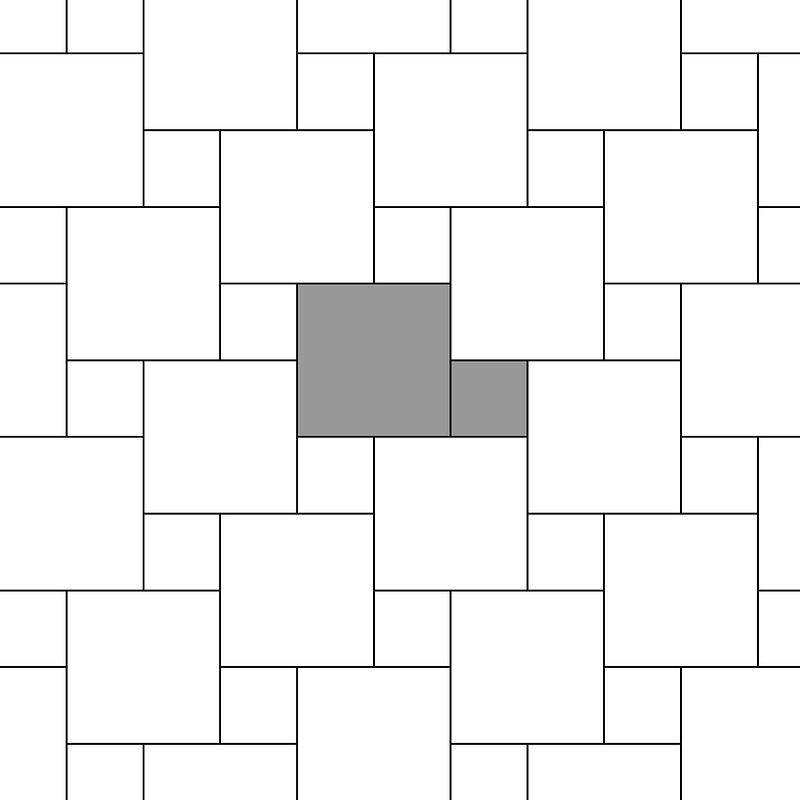

DP069 -
Sawn-Edge Dimensional Adjustable Teardrop
2 Pieces 2 Sizes
Each unit of this design pattern consists of 2 stone pieces in 2 different sizes. The the smallest version of the pattern is made of pieces that are 12×12″(1), 6×6″(1).
In Stone Designer start by using 12×12″ piece by entering width=12″ height=12″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Width | Height |
|---|---|
| 12x12"(1), 6x6"(1). | width=12" height=12" |
| 24x24"(1), 12X12"(1) | width=24" height=24" |
| 36x36"(1), 18X18"(1) | width=36" height=36" |
| 48X48"(1), 24x24""(1) | width=48" height=48" |
| 60X60"(1), 30X30"(1) | width=60" height=60" |

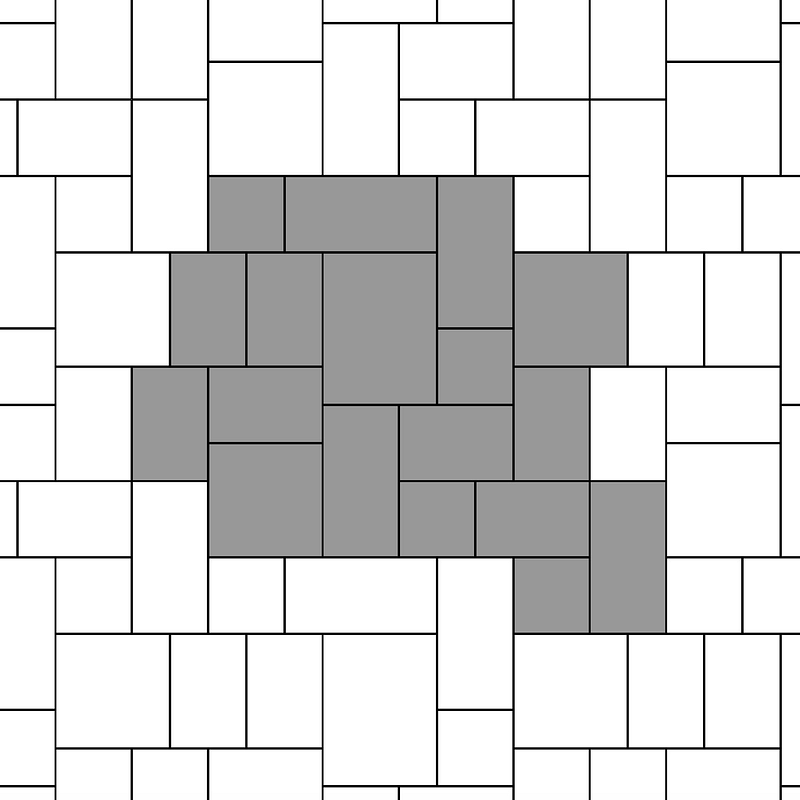

DP073 -
Sawn-Edge Dimensional Ashlar
18 Pieces 5 Sizes
Each unit of this design pattern consists of 18 stone pieces in 5 different sizes. The the smallest version of the pattern is made of pieces that are 12×12″(4), 18×12″(7), 24×12″(4), 18×18″(2), 24×18″(1).
In Stone Designer start by using 24″ wide rectangular piece by entering max width= 24″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x12"(4), 18x12"(7), 24x12"(4), 18x18"(2), 24x18"(1) | 24" |
| 24x24”(4), 36x24”(7), 48x24”(4), 36x36”(2), 48x36”(1) | 48" |
| 36x36”(4), 54x36”(7), 72x36”(4), 54x54”(2), 72x54”(1) | 72" |

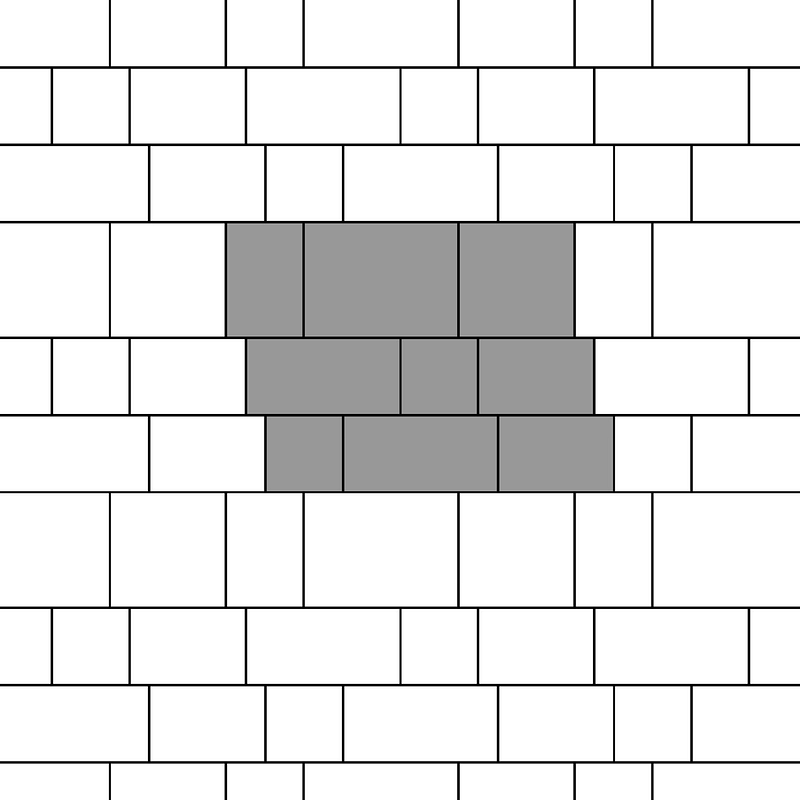

DP074 -
Sawn-Edge Dimensional Running Bond
9 Pieces 5 Sizes
Each unit of this design pattern consists of 9 stone pieces in 5 different sizes. The the smallest version of the pattern is made of pieces that are 12×12″(2), 18×12″(3), 24×12″(2), 18×18″(1), 24×18″(1).
In Stone Designer start by using 24″ wide rectangular piece by entering max width= 24″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x12"(2), 18x12"(3), 24x12"(2), 18x18"(1), 24x18"(1) | 24" |
| 24x24”(2), 36x24”(3), 48x24”(2), 36x36”(1), 48x36”(1) | 48" |
| 36x36”(2), 54x36”(3), 72x36”(2), 54x54”(1), 72x54”(1) | 72" |

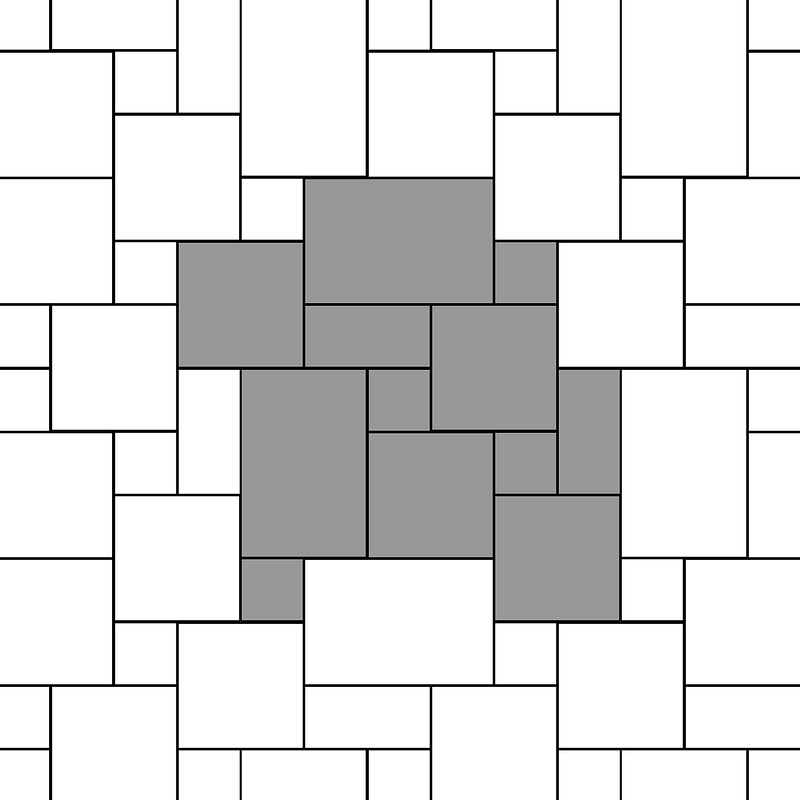

DP086 -
Sawn-Edge Dimensional Universal
12 Pieces 4 Sizes
Each unit of this design pattern consists of 12 stone pieces in 4 different sizes. The the smallest version of the pattern is made of pieces that are 6×6″(4), 12×6″(2), 12×12″(4), 18×12″(2).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 6x6"(4), 12x6"(2), 12x12"(4), 18x12"(2 | 18" |
| 12x12”(4), 24x12”(2), 24x24”(4), 36x24”(2) | 36" |
| 18x18”(4), 36x18”(2), 36x36”(4), 54x36”(2) | 54" |
| 24x24”(4), 48x24”(2), 48x48”(4), 72x48”(2) | 72" |

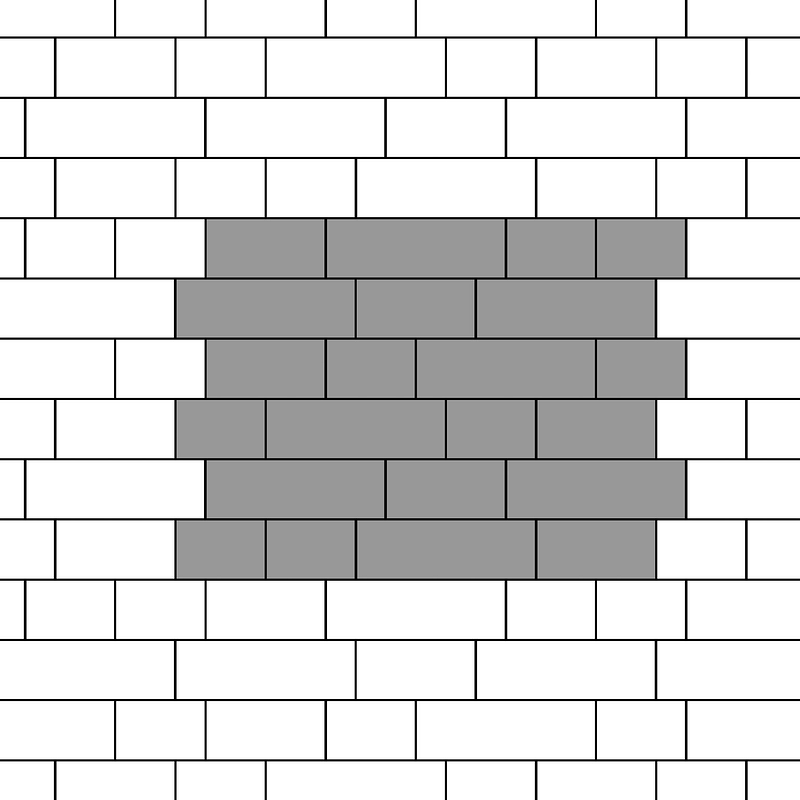

DP087 -
Sawn-Edge Dimensional Running Bond
22 Pieces 3 Sizes
Each unit of this design pattern consists of 22 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 18×12″(8), 24×12″(6), 36×12″(8).
In Stone Designer start by using 36″ wide rectangular piece by entering max width= 36″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 18x12"(8), 24x12"(6), 36x12"(8) | 36" |
| 36x24”(8), 48x24”(6), 72x24”(8) | 72" |

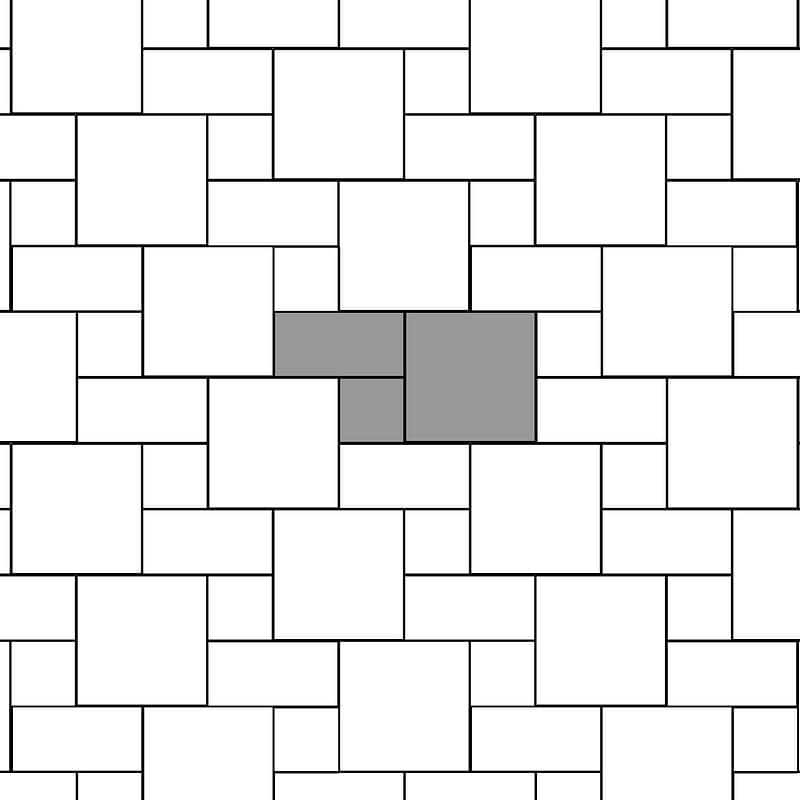

DP088 -
Sawn-Edge Dimensional Universal 3 Pieces 3 Sizes
Each unit of this design pattern consists of 3 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 6×6″(1), 12×6″(1), 12×12″(1).
In Stone Designer start by using 12″ wide rectangular piece by entering max width= 12″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 6x6"(1), 12x6"(1), 12x12"(1) | 12" |
| 12x12”(1), 24”x12(1), 24x24”(1) | 24" |
| 18x18”(1), 36x18(1), 36x36”(1) | 36" |
| 24”x24”(1), 48x24”(1), 48x48”(1) | 48" |
| 36x36"(1), 72x36"(1), 72x72”(1) | 72' |

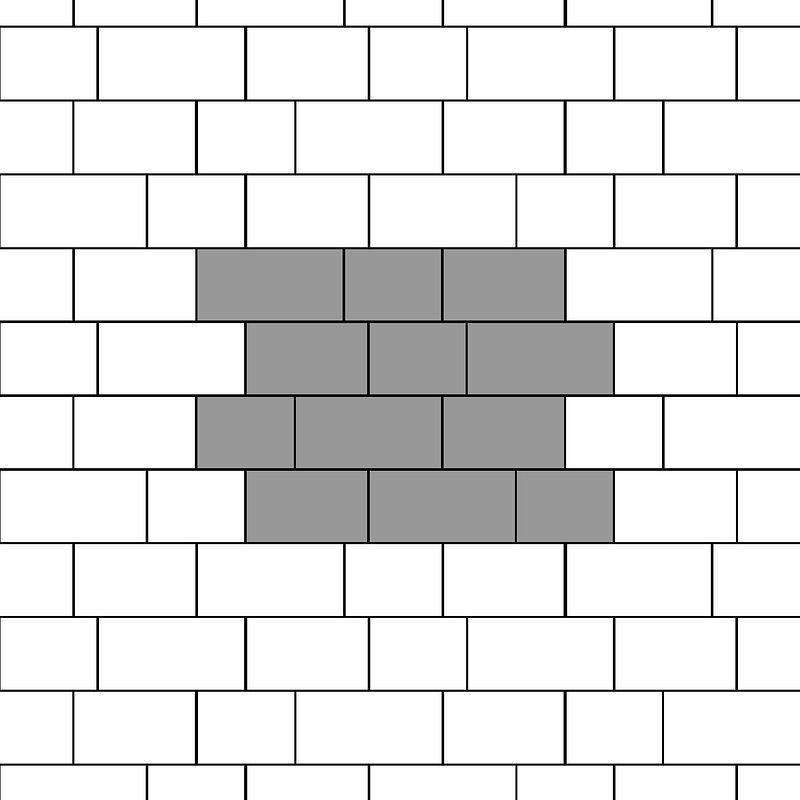

DP089 -
Sawn-Edge Dimensional Running Bond
12 Pieces 3 Sizes
Each unit of this design pattern consists of 12 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 24×18″(4), 30×18″(4), 36×18″(4).
In Stone Designer start by using 36″ wide rectangular piece by entering max width= 36″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 24x18"(4), 30x18"(4), 36x18"(4) | 36" |
| 48x36”(4), 60x36”(4), 72x36(4) | 72" |

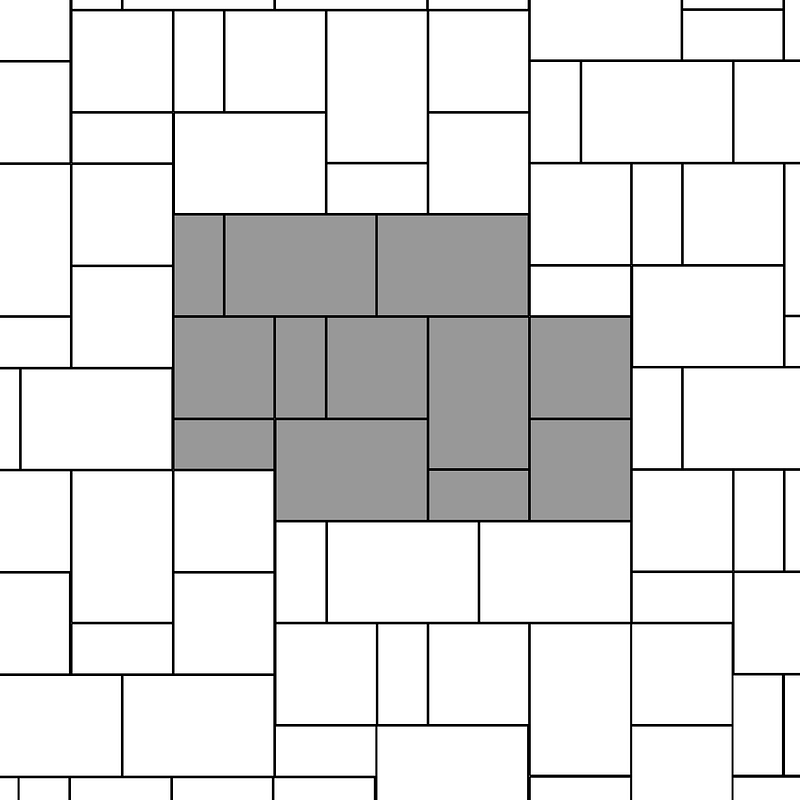

DP090 -
Sawn-Edge Dimensional Universal
12 Pieces 3 Sizes
Each unit of this design pattern consists of 12 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 12×6″(4), 12×12″(4), 18×12″(4).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6"(4), 12x12"(4), 18x12"(4) | 18" |
| 24x12”(4), 24x24”(4), 36x24”(4) | 36" |
| 36x18” (4), 36x36’(4), 54x36 (4) | 54" |
| 48x24”(4), 48x48”(4), 72x48”(4) | 72" |

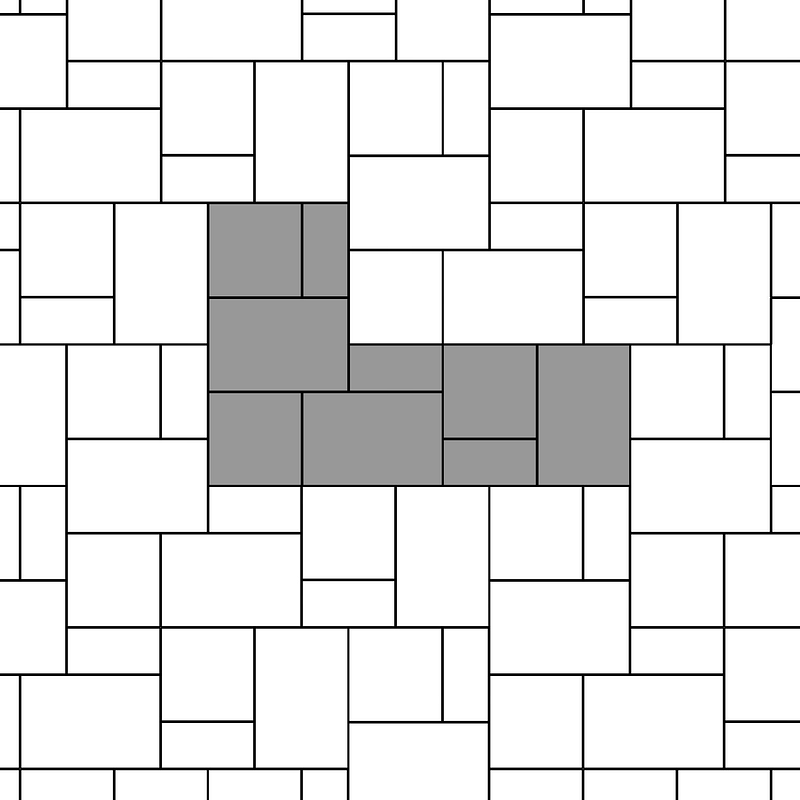

DP091 -
Sawn-Edge Dimensional Universal
9 Pieces 3 Sizes
Each unit of this design pattern consists of 9 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 12×6″(3),12×12″(3), 18×12″(3).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6"(3),12x12"(3), 18x12"(3) | 18" |
| 24x12”(3),24”x24”(3), 36x24”(3) | 36" |
| 36x18”(3),36x36”(3), 54x36”(3) | 54" |
| 48x24”(3),48x48”(3), 72x48”(3) | 72" |

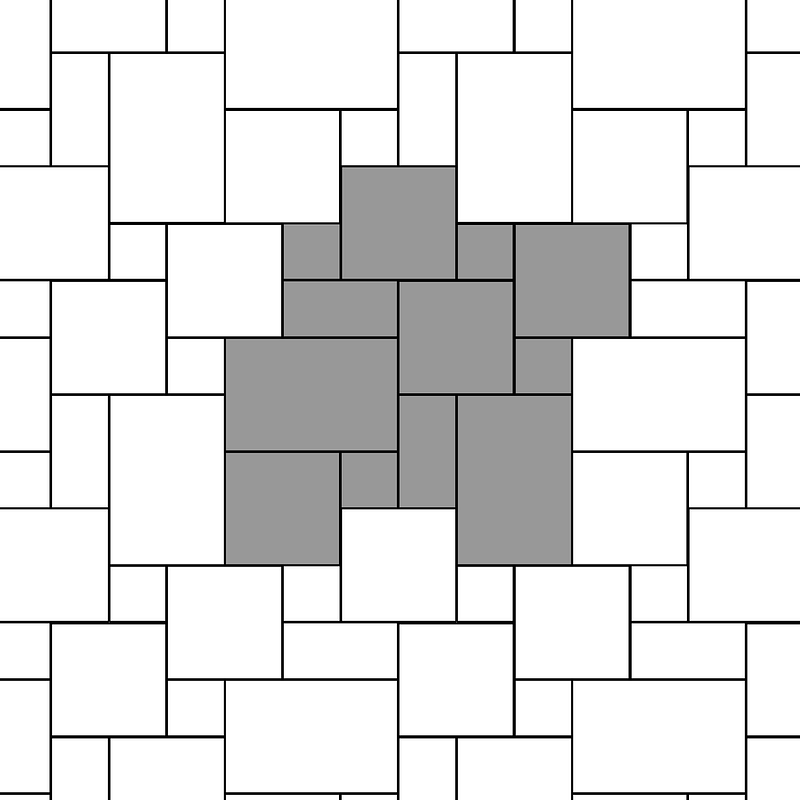

DP092 -
Sawn-Edge Dimensional Universal
12 Pieces 4 Sizes
Each unit of this design pattern consists of 12 stone pieces in 4 different sizes. The the smallest version of the pattern is made of pieces that are 6×6″(4), 12×6″(2), 12×12″(4), 18×12″(2).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 6x6"(4), 12x6"(2), 12x12"(4), 18x12"(2) | 18" |
| 12x12”(4), 24x12”(2), 24x24”(4), 36x24”(2) | 36" |
| 18x18”(4), 36x18”(2), 36x36”(4), 54x36”(2)x | 54" |
| 24x24”(4), 48x24”(2), 48x48”(4), 72x48”(2) | 72" |

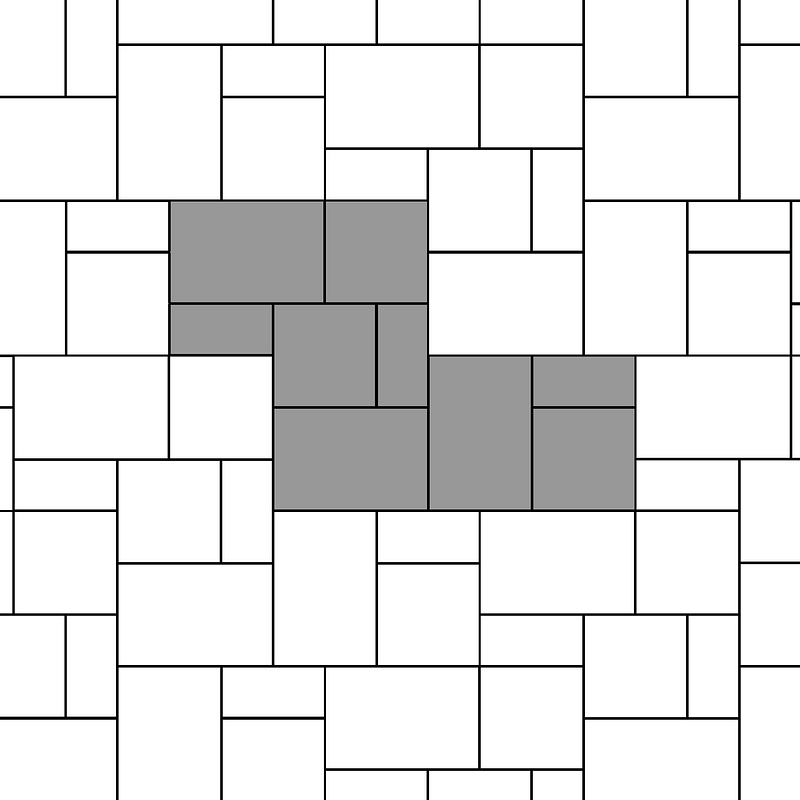

DP093 -
Sawn-Edge Dimensional Universal
9 Pieces 3 Sizes
Each unit of this design pattern consists of 9 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 12×6″(3), 12×12″(3), 18×12″(3).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6"(3), 12x12"(3), 18x12"(3) | 18" |
| 24x12”(3), 24x24”(3), 36x24”(3) | 36" |
| 36x18”(3), 36x36”(3), 54x36”(3) | 54" |
| 48x24”(3), 48x48”(3), 72x48”(3) | 72" |

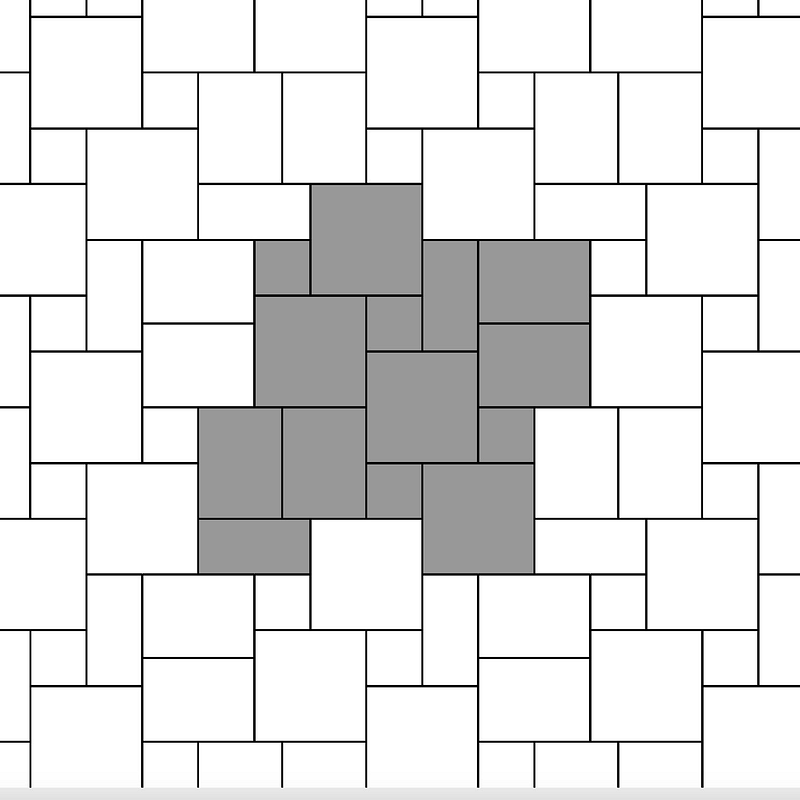

DP094 -
Sawn-Edge Dimensional Universal
14 Pieces 4 Sizes
Each unit of this design pattern consists of 14 stone pieces in 4 different sizes. The the smallest version of the pattern is made of pieces that are 12×12″(4), 24×12″(2), 24×18″(4), 24×24″(4).
In Stone Designer start by using 24″ wide rectangular piece by entering max width= 24″. Use you can scale the pattern up using the dimensional sizes below
| Stone Piece Sizes | Max Width |
|---|---|
| 12x12"(4), 24x12"(2), 24x18"(4), 24x24"(4) | 24" |
| 24x24”(4), 48x24”(2), 48x36”(4), 48x48”(4) | 48" |
| 36x36”(4), 72x36”(2), 72x54”(4), 72x72”(4) | 72" |

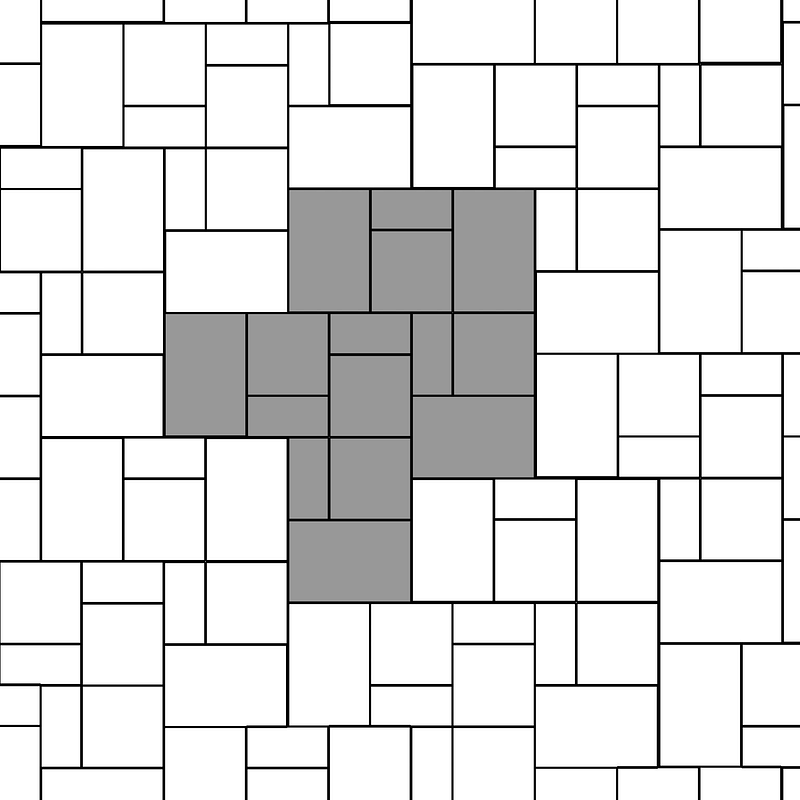

DP095-
Sawn-Edge Dimensional Universal
15 Pieces 3 Sizes
Each unit of this design pattern consists of 15 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 12×6″(5), 12×12″(5), 18×12″(5).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6"(5), 12x12"(5), 18x12"(5) | 18" |
| 24x12”(5), 24x24”(5), 36x24”(5) | 36" |
| 36x18”(5), 36x36”(5), 54x36”(5) | 54" |
| 48x24”(5), 48x48”(5), 72x48”(5) | 72" |

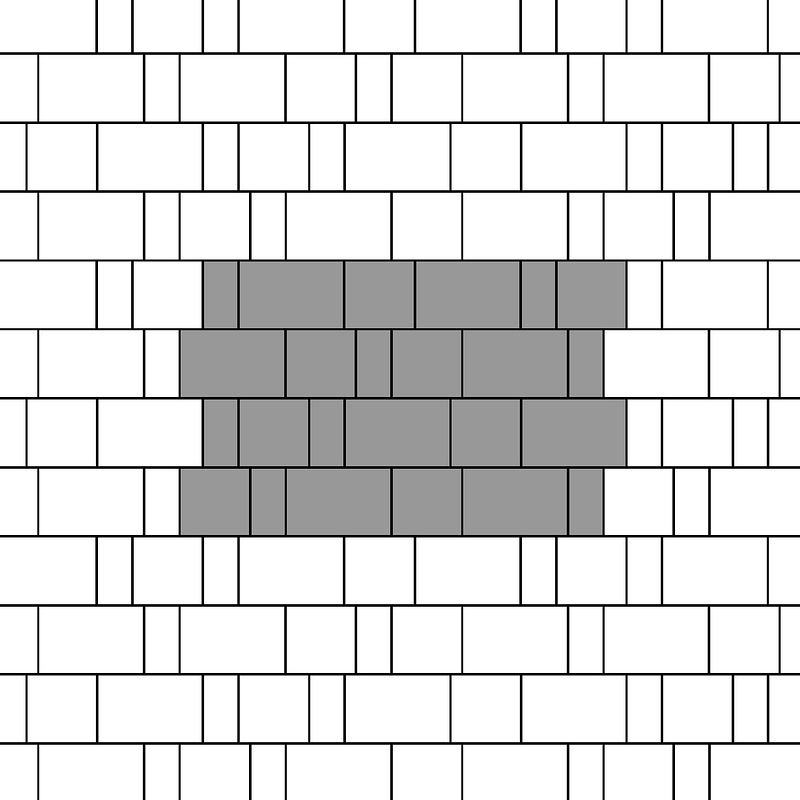

DP096 -
Sawn-Edge Dimensional Universal
24 Pieces 3 Sizes
Each unit of this design pattern consists of 24 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 12×6″(8), 12×12″(8), 18×12″(8).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6”(8), 12x12”(8), 18x12”(8) | 18" |
| 24x12”(8), 24x24”(8), 36x24”(8) | 36" |
| 36x18”(8), 36x36”(8), 54x36”(8) | 54" |
| 48x24”(8), 48x48”(8), 72x48”(8) | 72" |

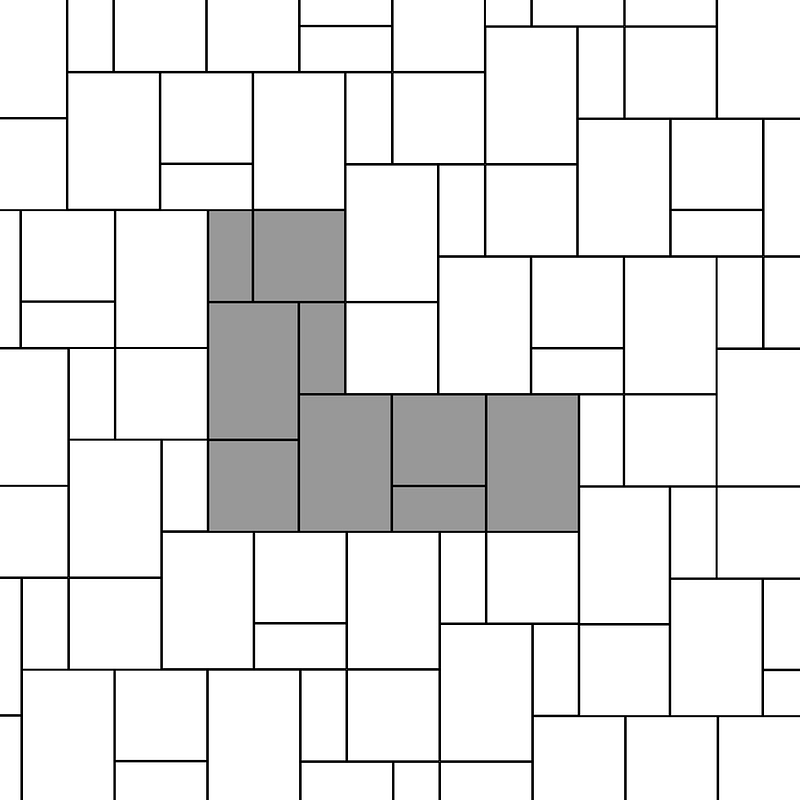

DP097 -
Sawn-Edge Dimensional Universal
9 Pieces 3 Sizes
Each unit of this design pattern consists of 9 stone pieces in 3 different sizes. The the smallest version of the pattern is made of pieces that are 12×6″(3), 12×12″(3), 18×12″(3).
In Stone Designer start by using 18″ wide rectangular piece by entering max width= 18″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width |
|---|---|
| 12x6"(3), 12x12"(3), 18x12"(3) | 18" |
| 24x12”(3), 24x24”(3), 36x24”(3) | 36" |
| 36x18”(3), 36x36”(3), 54x36”(3) | 54" |
| 48x24”(3), 48x48”(3), 72x48”(3) | 72" |

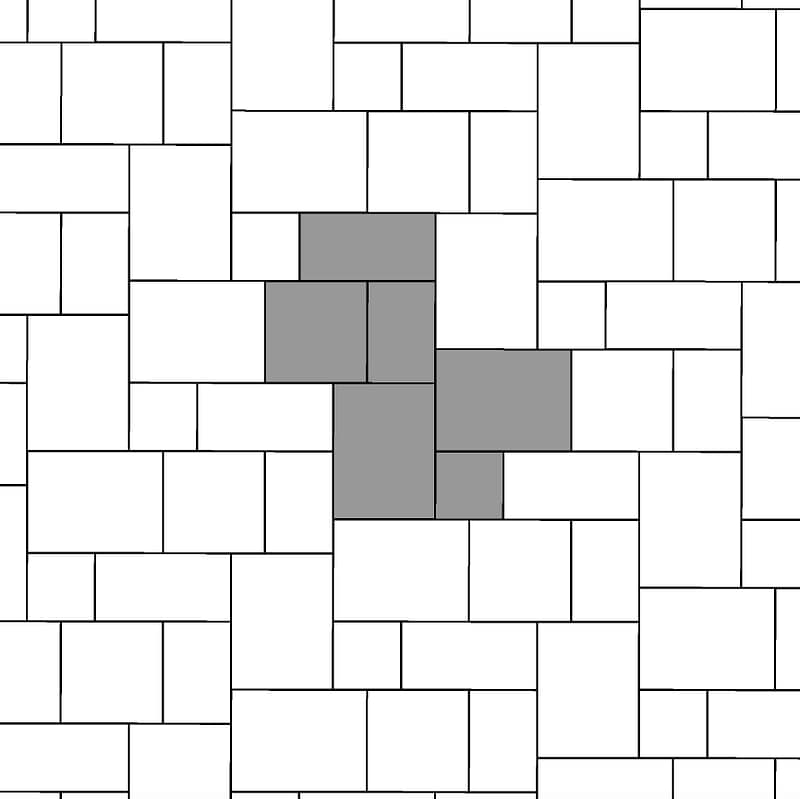

DP100 -
Sawn-Edge Dimensional Universal
6 Pieces 5 Sizes - Small Format
Each unit of this design pattern consists of 6 stone pieces in 5 different sizes. The the smallest version of the pattern is made of pieces that are 24×18”(2), 24×12”(1), 18×18”(1), 18×12”(1), 12×12”(1).
In Stone Designer this pattern is unusual because it needs to be rotated by 30 degrees in order to tile seamlessly. Because of the way that “max width” is measured (along the horizontal axis of your screen) you will need to multiply the desired width of the stone pieces by 1.16 to account for the rotation.
In Stone Designer start by using 36″ wide rectangular piece by entering max width= 24×1.16= 27.8″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width: |
|---|---|
|
24x18”(2) 24x12”(1) 18x18”(1) 18x12”(1) 12x12”(1) | 27.8" |
|
48x36”(2) 48x24”(1) 36x36”(1) 36x24”(1) 24x24”(1) | 55.7" |

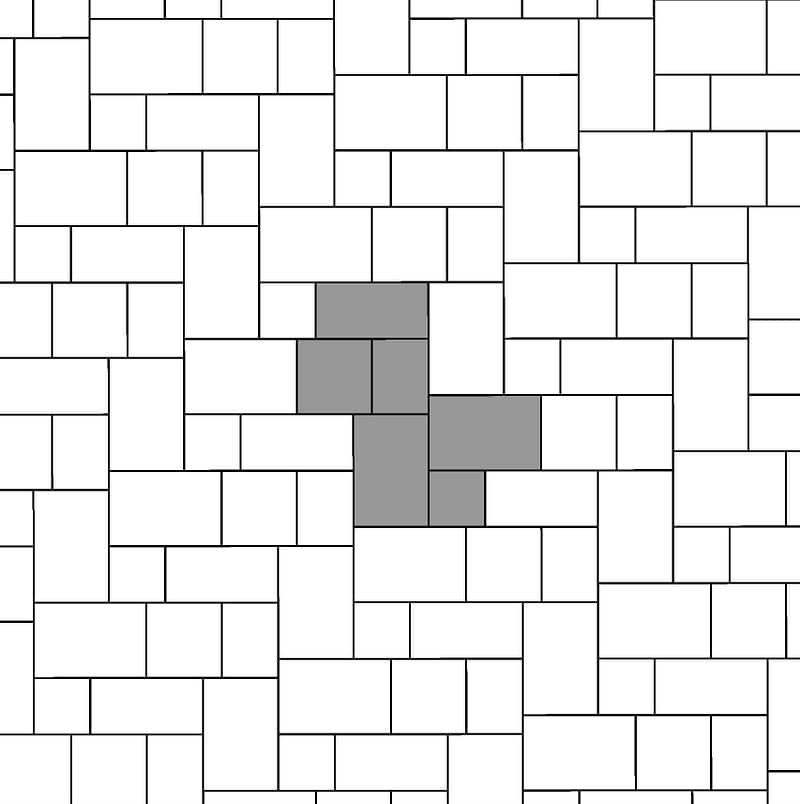

DP101 -
Sawn-Edge Dimensional Universal
6 Pieces 5 Sizes - Large Format
Each unit of this design pattern consists of 6 stone pieces in 5 different sizes. The the smallest version of the pattern is made of pieces that are 36×24″(1), 36×18″(2), 24×24″(1), 24×18″(1), 18×18″(1).
In Stone Designer this pattern is unusual because it needs to be rotated by 30 degrees in order to tile seamlessly. Because of the way that “max width” is measured (along the horizontal axis of your screen) you will need to multiply the desired width of the stone pieces by 1.16 to account for the rotation.
In Stone Designer start by using 36″ wide rectangular piece by entering max width= 36×1.16= 41.8″. Use you can scale the pattern up using the dimensional sizes below.
| Stone Piece Sizes | Max Width: |
|---|---|
|
36x24"(1) 36x18"(2) 24x24"(1) 24x18"(1) 18x18"(1) | 41.6" |
|
72x48”(2) 72x36”(1) 48x48”(1) 48x36”(1) 36x36”(1) | 83.5" |
