2D CAD Hatch Files
The way in which stone pieces are sized and placed relative to each other is referred to as a design pattern. Design patterns play a practical construction role, but they can also be used to evoke a certain feeling. For example, a grid cobblestone pattern can evoke a feeling of security, whereas a fan cobblestone pattern might evoke whimsy and fun.
Hatch files are seamless stone patterns that can be applied to 2D drawings; as well as horizontal and vertical surfaces in 3D drawings. All of our 100+ stone design patterns are available as 2D hatch files for Revit and AutoCAD. They are downloadable from our Stone Designer as a .zip file. Simply follow the steps below …

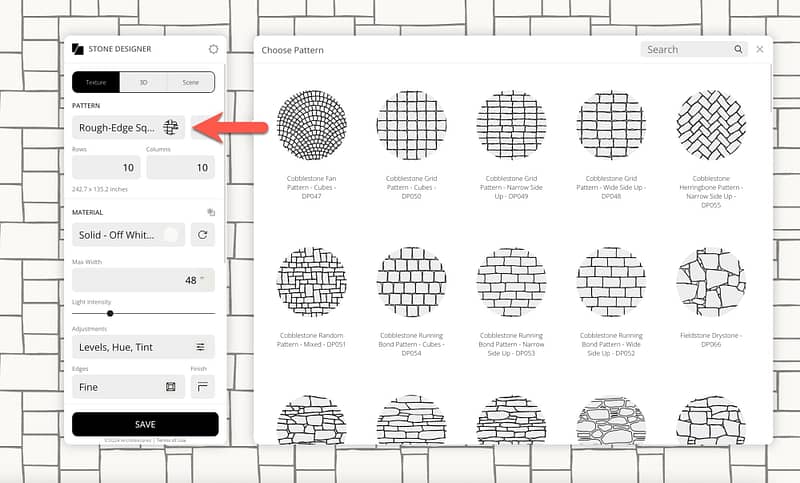

1. Go to Stone Designer and choose a pattern

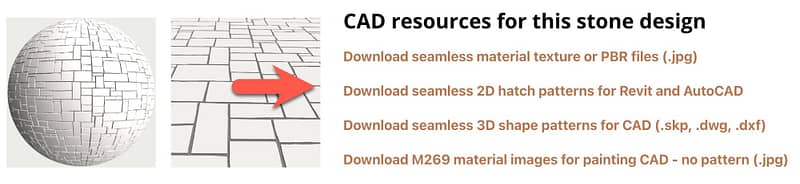

2. Scroll down and click Download seamless hatch patterns
You might notice the hatch files are not in the commonly used PAT hatch exchange format. PAT exchange files work for hatches comprised of straight sides. Because most of our stone patterns have rough edges, we needed to take different approach to sharing them with you. Please follow these special instructions for installing the files:
If you need assistance using our Hatch Patterns for AutoCAD or Revit please contact cadsupport@stonecurators.com . We will try to answer your query promptly, but it may be 2 or 3 business days.
COPYRIGHT
The files provided are the copyrighted property of Stone Curators. We ask that you include “Courtesy of Stone Curators” wherever they are displayed. You may use these files for your personal or work-related use. You may share these files and derivative products with work colleagues, contractors and customers. For other uses, please contact us to obtain permission. Please see our complete Terms of Use for more information.
